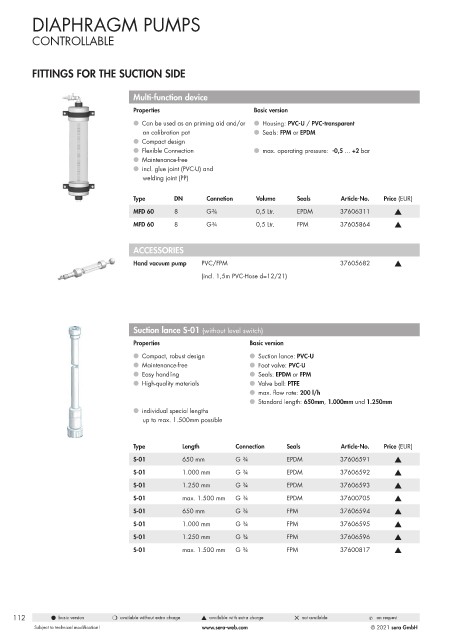

Page 112 - Pompy Dozujące 2021

DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE SUCTION SIDE

Multi-function device
Properties Basic version

l Can be used as an priming aid and/or l Housing: PVC-U / PVC-transparent

an calibration pot l Seals: FPM or EPDM
l Compact design
l Flexible Connection l max. operating pressure: -0,5 ... +2 bar
l Maintenance-free
l incl. glue joint (PVC-U) and
welding joint (PP)

Type DN Connetion Volume Seals Article-No. Price (EUR)
MFD 60 8 G¾ 0,5 Ltr. EPDM 37606311 s
MFD 60 8 G¾ 0,5 Ltr. FPM 37605864 s

ACCESSORIES

Hand vacuum pump PVC/FPM 37605682 s
(incl. 1,5m PVC-Hose d=12/21)

Suction lance S-01 (without level switch)
Properties Basic version
l Compact, robust design l Suction lance: PVC-U
l Maintenance-free l Foot valve: PVC-U
l Easy handling l Seals: EPDM or FPM
l High-quality materials l Valve ball: PTFE
l max. flow rate: 200 l/h
l Standard length: 650mm, 1.000mm und 1.250mm
l individual special lengths
up to max. 1.500mm possible

Type Length Connection Seals Article-No. Price (EUR)
S-01 650 mm G ¾ EPDM 37606591 s
S-01 1.000 mm G ¾ EPDM 37606592 s
S-01 1.250 mm G ¾ EPDM 37606593 s
S-01 max. 1.500 mm G ¾ EPDM 37600705 s
S-01 650 mm G ¾ FPM 37606594 s

S-01 1.000 mm G ¾ FPM 37606595 s
S-01 1.250 mm G ¾ FPM 37606596 s
S-01 max. 1.500 mm G ¾ FPM 37600817 s

112 l basic version m available without extra charge s available with extra charge 5 not available & on request
Subject to technical modification! www.sera-web.com © 2021 sera GmbH © 2021 sera GmbH www.sera-web.com Subject to technical modification!
