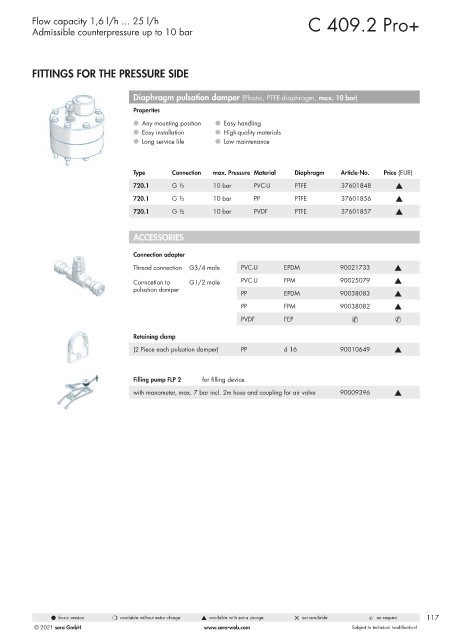

Page 117 - Pompy Dozujące 2021

Flow capacity 1,6 l/h ... 25 l/h C 409.2 Pro+
Admissible counterpressure up to 10 bar

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Plastic, PTFE-diaphragm, max. 10 bar)
Properties

l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max. Pressure Material Diaphragm Article-No. Price (EUR)
720.1 G ½ 10 bar PVC-U PTFE 37601848 s
720.1 G ½ 10 bar PP PTFE 37601856 s
720.1 G ½ 10 bar PVDF PTFE 37601857 s

ACCESSORIES

Connection adapter
Thread connection G3/4 male PVC-U EPDM 90021733 s

Conncetion to G1/2 male PVC-U FPM 90025079 s
pulsation damper
PP EPDM 90038083 s
PP FPM 90038082 s
PVDF FEP & &

Retaining clamp
(2 Piece each pulsation damper) PP d 16 90010649 s

Filling pump FLP 2 for filling device
with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 117
Subject to technical modification! www.sera-web.com © 2021 sera GmbH © 2021 sera GmbH www.sera-web.com Subject to technical modification!
