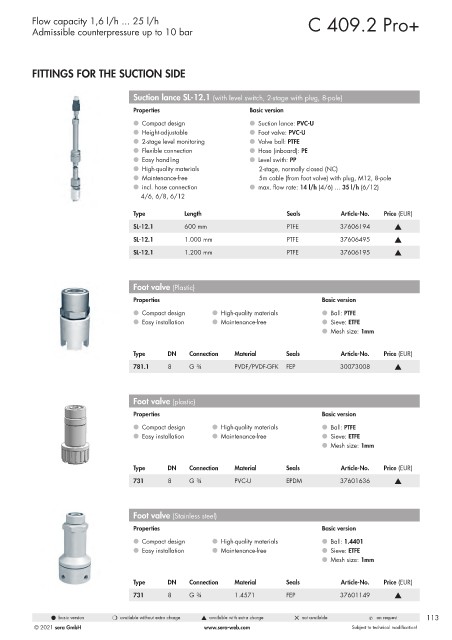

Page 113 - Pompy Dozujące 2021

Flow capacity 1,6 l/h ... 25 l/h C 409.2 Pro+
Admissible counterpressure up to 10 bar

FITTINGS FOR THE SUCTION SIDE

Suction lance SL-12.1 (with level switch, 2-stage with plug, 8-pole)
Properties Basic version

l Compact design l Suction lance: PVC-U
l Height-adjustable l Foot valve: PVC-U
l 2-stage level monitoring l Valve ball: PTFE
l Flexible connection l Hose (inboard): PE
l Easy handling l Level swith: PP
l High-quality materials 2-stage, normally closed (NC)
l Maintenance-free 5m cable (from foot valve) with plug, M12, 8-pole
l incl. hose connection l max. flow rate: 14 l/h (4/6) ... 35 l/h (6/12)
4/6, 6/8, 6/12
Type Length Seals Article-No. Price (EUR)

SL-12.1 600 mm PTFE 37606194 s
SL-12.1 1.000 mm PTFE 37606495 s
SL-12.1 1.200 mm PTFE 37606195 s

Foot valve (Plastic)

Properties Basic version
l Compact design l High-quality materials l Ball: PTFE
l Easy installation l Maintenance-free l Sieve: ETFE
l Mesh size: 1mm

Type DN Connection Material Seals Article-No. Price (EUR)
781.1 8 G ¾ PVDF/PVDF-GFK FEP 30073008 s

Foot valve (plastic)
Properties Basic version

l Compact design l High-quality materials l Ball: PTFE
l Easy installation l Maintenance-free l Sieve: ETFE
l Mesh size: 1mm

Type DN Connection Material Seals Article-No. Price (EUR)
731 8 G ¾ PVC-U EPDM 37601636 s

Foot valve (Stainless steel)
Properties Basic version
l Compact design l High-quality materials l Ball: 1.4401
l Easy installation l Maintenance-free l Sieve: ETFE
l Mesh size: 1mm

Type DN Connection Material Seals Article-No. Price (EUR)
731 8 G ¾ 1.4571 FEP 37601149 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 113
