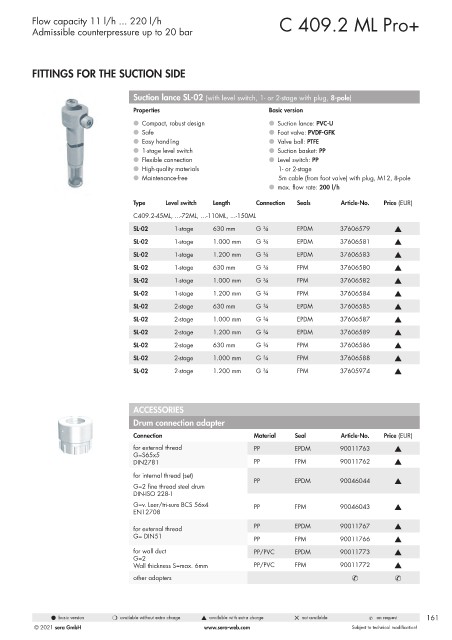

Page 161 - Pompy Dozujące 2021

Flow capacity 11 l/h ... 220 l/h C 409.2 ML Pro+
Admissible counterpressure up to 20 bar

FITTINGS FOR THE SUCTION SIDE

Suction lance SL-02 (with level switch, 1- or 2-stage with plug, 8-pole)
Properties Basic version

l Compact, robust design l Suction lance: PVC-U
l Safe l Foot valve: PVDF-GFK
l Easy handling l Valve ball: PTFE
l 1-stage level switch l Suction basket: PP
l Flexible connection l Level switch: PP
l High-quality materials 1- or 2-stage
l Maintenance-free 5m cable (from foot valve) with plug, M12, 8-pole
l max. flow rate: 200 l/h

Type Level switch Length Connection Seals Article-No. Price (EUR)
C409.2-45ML, ...-72ML, ...-110ML, ...-150ML
SL-02 1-stage 630 mm G ¾ EPDM 37606579 s
SL-02 1-stage 1.000 mm G ¾ EPDM 37606581 s
SL-02 1-stage 1.200 mm G ¾ EPDM 37606583 s
SL-02 1-stage 630 mm G ¾ FPM 37606580 s
SL-02 1-stage 1.000 mm G ¾ FPM 37606582 s

SL-02 1-stage 1.200 mm G ¾ FPM 37606584 s
SL-02 2-stage 630 mm G ¾ EPDM 37606585 s
SL-02 2-stage 1.000 mm G ¾ EPDM 37606587 s
SL-02 2-stage 1.200 mm G ¾ EPDM 37606589 s
SL-02 2-stage 630 mm G ¾ FPM 37606586 s
SL-02 2-stage 1.000 mm G ¾ FPM 37606588 s
SL-02 2-stage 1.200 mm G ¾ FPM 37605974 s

ACCESSORIES

Drum connection adapter
Connection Material Seal Article-No. Price (EUR)
for external thread PP EPDM 90011763 s
G=S65x5
DIN2781 PP FPM 90011762 s

for internal thread (set)
PP EPDM 90046044 s
G=2 fine thread steel drum
DIN-ISO 228-1

G=v. Leer/tri-sure BCS 56x4 PP FPM 90046043 s
EN12708
for external thread PP EPDM 90011767 s
G= DIN51 PP FPM 90011766 s
for wall duct PP/PVC EPDM 90011773 s
G=2
Wall thickness S=max. 6mm PP/PVC FPM 90011772 s
other adapters & &

l basic version m available without extra charge s available with extra charge 5 not available & on request 161
