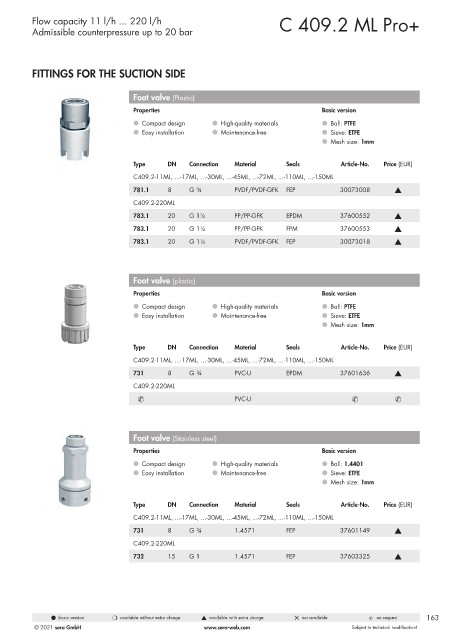

Page 163 - Pompy Dozujące 2021

Flow capacity 11 l/h ... 220 l/h C 409.2 ML Pro+
Admissible counterpressure up to 20 bar

FITTINGS FOR THE SUCTION SIDE

Foot valve (Plastic)
Properties Basic version

l Compact design l High-quality materials l Ball: PTFE
l Easy installation l Maintenance-free l Sieve: ETFE
l Mesh size: 1mm

Type DN Connection Material Seals Article-No. Price (EUR)
C409.2-11ML, ...-17ML, ...-30ML, ...-45ML, ...-72ML, ...-110ML, ...-150ML
781.1 8 G ¾ PVDF/PVDF-GFK FEP 30073008 s

C409.2-220ML
783.1 20 G 1¼ PP/PP-GFK EPDM 37600552 s
783.1 20 G 1¼ PP/PP-GFK FPM 37600553 s
783.1 20 G 1¼ PVDF/PVDF-GFK FEP 30073018 s

Foot valve (plastic)

Properties Basic version
l Compact design l High-quality materials l Ball: PTFE
l Easy installation l Maintenance-free l Sieve: ETFE
l Mesh size: 1mm

Type DN Connection Material Seals Article-No. Price (EUR)
C409.2-11ML, ...-17ML, ...-30ML, ...-45ML, ...-72ML, ...-110ML, ...-150ML

731 8 G ¾ PVC-U EPDM 37601636 s
C409.2-220ML
& PVC-U & &

Foot valve (Stainless steel)
Properties Basic version

l Compact design l High-quality materials l Ball: 1.4401
l Easy installation l Maintenance-free l Sieve: ETFE
l Mesh size: 1mm

Type DN Connection Material Seals Article-No. Price (EUR)
C409.2-11ML, ...-17ML, ...-30ML, ...-45ML, ...-72ML, ...-110ML, ...-150ML
731 8 G ¾ 1.4571 FEP 37601149 s

C409.2-220ML
732 15 G 1 1.4571 FEP 37603325 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 163
