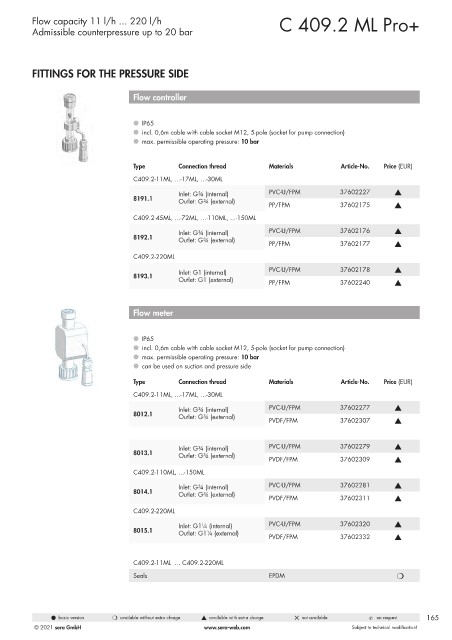

Page 165 - Pompy Dozujące 2021

Flow capacity 11 l/h ... 220 l/h C 409.2 ML Pro+
Admissible counterpressure up to 20 bar

FITTINGS FOR THE PRESSURE SIDE

Flow controller

l IP65
l incl. 0,6m cable with cable socket M12, 5-pole (socket for pump connection)
l max. permissible operating pressure: 10 bar

Type Connection thread Materials Article-No. Price (EUR)
C409.2-11ML, ...-17ML, ...-30ML
Inlet: G¾ (internal) PVC-U/FPM 37602227 s
8191.1 Outlet: G¾ (external) PP/FPM 37602175 s

C409.2-45ML, ...-72ML, ...-110ML, ...-150ML

Inlet: G¾ (internal) PVC-U/FPM 37602176 s
8192.1 Outlet: G¾ (external) PP/FPM 37602177 s

C409.2-220ML
Inlet: G1 (internal) PVC-U/FPM 37602178 s
8193.1
Outlet: G1 (external) PP/FPM 37602240 s

Flow meter

l IP65
l incl. 0,6m cable with cable socket M12, 5-pole (socket for pump connection)
l max. permissible operating pressure: 10 bar
l can be used on suction and pressure side
Type Connection thread Materials Article-No. Price (EUR)
C409.2-11ML, ...-17ML, ...-30ML

Inlet: G¾ (internal) PVC-U/FPM 37602277 s
8012.1 Outlet: G¾ (external)
PVDF/FPM 37602307 s

Inlet: G¾ (internal) PVC-U/FPM 37602279 s
8013.1 Outlet: G¾ (external)
PVDF/FPM 37602309 s
C409.2-110ML, ...-150ML
Inlet: G¾ (internal) PVC-U/FPM 37602281 s
8014.1 Outlet: G¾ (external)
PVDF/FPM 37602311 s
C409.2-220ML

Inlet: G1¼ (internal) PVC-U/FPM 37602320 s
8015.1 Outlet: G1¼ (external)
PVDF/FPM 37602332 s

C409.2-11ML ... C409.2-220ML
Seals EPDM m

l basic version m available without extra charge s available with extra charge 5 not available & on request 165
