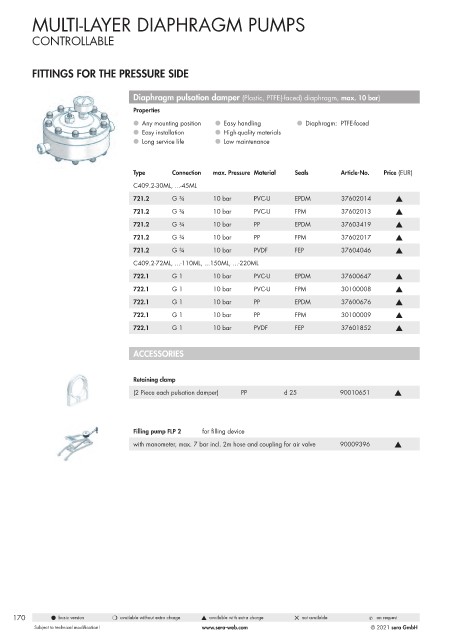

Page 170 - Pompy Dozujące 2021

MULTI-LAYER DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Plastic, PTFE(-faced) diaphragm, max. 10 bar)
Properties

l Any mounting position l Easy handling l Diaphragm: PTFE-faced
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max. Pressure Material Seals Article-No. Price (EUR)
C409.2-30ML, ...-45ML
721.2 G ¾ 10 bar PVC-U EPDM 37602014 s
721.2 G ¾ 10 bar PVC-U FPM 37602013 s
721.2 G ¾ 10 bar PP EPDM 37603419 s
721.2 G ¾ 10 bar PP FPM 37602017 s
721.2 G ¾ 10 bar PVDF FEP 37604046 s

C409.2-72ML, ...-110ML, ...150ML, ...-220ML
722.1 G 1 10 bar PVC-U EPDM 37600647 s
722.1 G 1 10 bar PVC-U FPM 30100008 s
722.1 G 1 10 bar PP EPDM 37600676 s
722.1 G 1 10 bar PP FPM 30100009 s
722.1 G 1 10 bar PVDF FEP 37601852 s

ACCESSORIES

Retaining clamp
(2 Piece each pulsation damper) PP d 25 90010651 s

Filling pump FLP 2 for filling device
with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

170 l basic version m available without extra charge s available with extra charge 5 not available & on request
