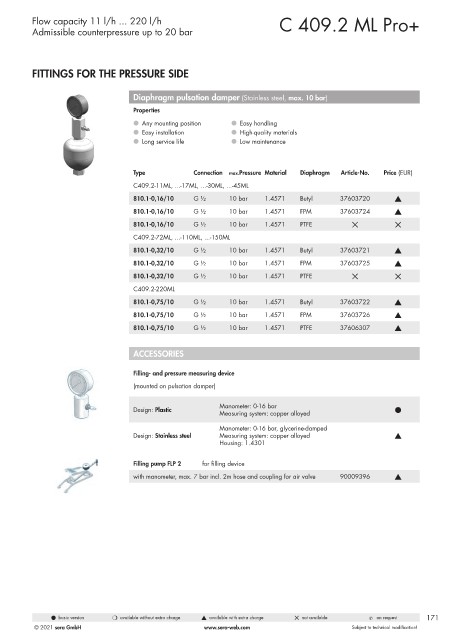

Page 171 - Pompy Dozujące 2021

Flow capacity 11 l/h ... 220 l/h C 409.2 ML Pro+
Admissible counterpressure up to 20 bar

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Stainless steel, max. 10 bar)
Properties

l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max.Pressure Material Diaphragm Article-No. Price (EUR)
C409.2-11ML, ...-17ML, ...-30ML, ...-45ML
810.1-0,16/10 G ½ 10 bar 1.4571 Butyl 37603720 s
810.1-0,16/10 G ½ 10 bar 1.4571 FPM 37603724 s
810.1-0,16/10 G ½ 10 bar 1.4571 PTFE 5 5
C409.2-72ML, ...-110ML, ...-150ML
810.1-0,32/10 G ½ 10 bar 1.4571 Butyl 37603721 s

810.1-0,32/10 G ½ 10 bar 1.4571 FPM 37603725 s
810.1-0,32/10 G ½ 10 bar 1.4571 PTFE 5 5
C409.2-220ML
810.1-0,75/10 G ½ 10 bar 1.4571 Butyl 37603722 s
810.1-0,75/10 G ½ 10 bar 1.4571 FPM 37603726 s
810.1-0,75/10 G ½ 10 bar 1.4571 PTFE 37606307 s

ACCESSORIES

Filling- and pressure measuring device
(mounted on pulsation damper)

Manometer: 0-16 bar
Design: Plastic l
Measuring system: copper alloyed
Manometer: 0-16 bar, glycerine-damped
Design: Stainless steel Measuring system: copper alloyed s
Housing: 1.4301

Filling pump FLP 2 for filling device
with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 171
