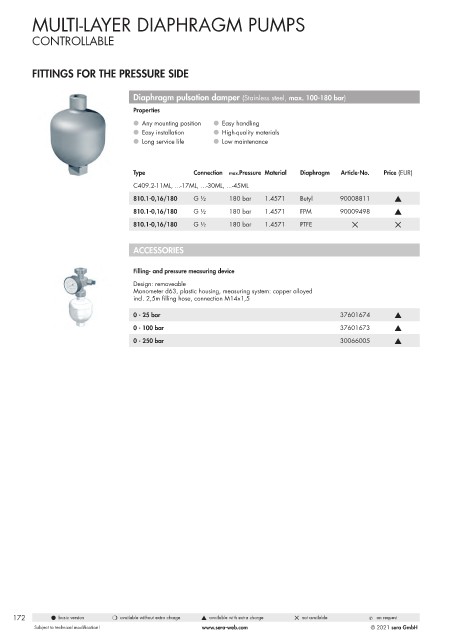

Page 172 - Pompy Dozujące 2021

MULTI-LAYER DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Stainless steel, max. 100-180 bar)
Properties

l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max.Pressure Material Diaphragm Article-No. Price (EUR)
C409.2-11ML, ...-17ML, ...-30ML, ...-45ML
810.1-0,16/180 G ½ 180 bar 1.4571 Butyl 90008811 s
810.1-0,16/180 G ½ 180 bar 1.4571 FPM 90009498 s
810.1-0,16/180 G ½ 180 bar 1.4571 PTFE 5 5

ACCESSORIES

Filling- and pressure measuring device
Design: removeable
Manometer d63, plastic housing, measuring system: copper alloyed
incl. 2,5m filling hose, connection M14x1,5

0 - 25 bar 37601674 s
0 - 100 bar 37601673 s
0 - 250 bar 30066005 s

172 l basic version m available without extra charge s available with extra charge 5 not available & on request
Subject to technical modification! www.sera-web.com © 2021 sera GmbH © 2021 sera GmbH www.sera-web.com Subject to technical modification!
