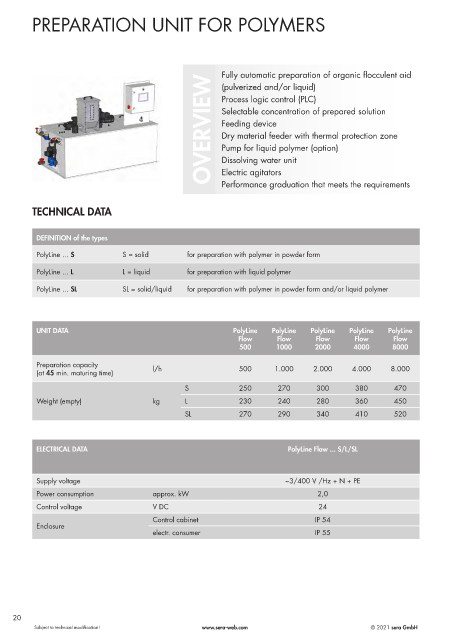

PREPARATION UNIT FOR POLYMERS
Fully automatic preparation of organic flocculent aid
OVERVIEW Selectable concentration of prepared solution
(pulverized and/or liquid)
Process logic control (PLC)
Feeding device
Dry material feeder with thermal protection zone
Pump for liquid polymer (option)
Dissolving water unit
Performance graduation that meets the requirements
TECHNICAL DATA Electric agitators
DEFINITION of the types
PolyLine ... S S = solid for preparation with polymer in powder form
PolyLine ... L L = liquid for preparation with liquid polymer
PolyLine ... SL SL = solid/liquid for preparation with polymer in powder form and/or liquid polymer
UNIT DATA PolyLine PolyLine PolyLine PolyLine PolyLine
Flow Flow Flow Flow Flow
500 1000 2000 4000 8000
Preparation capacity l/h 500 1.000 2.000 4.000 8.000
(at 45 min. maturing time)
S 250 270 300 380 470
Weight (empty) kg L 230 240 280 360 450
SL 270 290 340 410 520
ELECTRICAL DATA PolyLine Flow ... S/L/SL
Supply voltage ~3/400 V /Hz + N + PE
Power consumption approx. kW 2,0
Control voltage V DC 24
Control cabinet IP 54
Enclosure
electr. consumer IP 55
20
