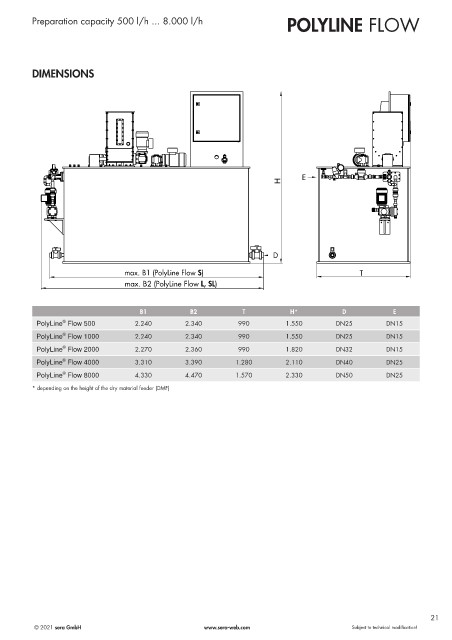

Preparation capacity 500 l/h ... 8.000 l/h POLYLINE FLOW

DIMENSIONS

E
H

D

max. B1 (PolyLine Flow S) T
max. B2 (PolyLine Flow L, SL)

B1 B2 T H* D E
®
PolyLine Flow 500 2.240 2.340 990 1.550 DN25 DN15
®
PolyLine Flow 1000 2.240 2.340 990 1.550 DN25 DN15
PolyLine Flow 2000 2.270 2.360 990 1.820 DN32 DN15
®
PolyLine Flow 4000 3.310 3.390 1.280 2.110 DN40 DN25
®
PolyLine Flow 8000 4.330 4.470 1.570 2.330 DN50 DN25
®
* depending on the height of the dry material feeder (DMF)

21
