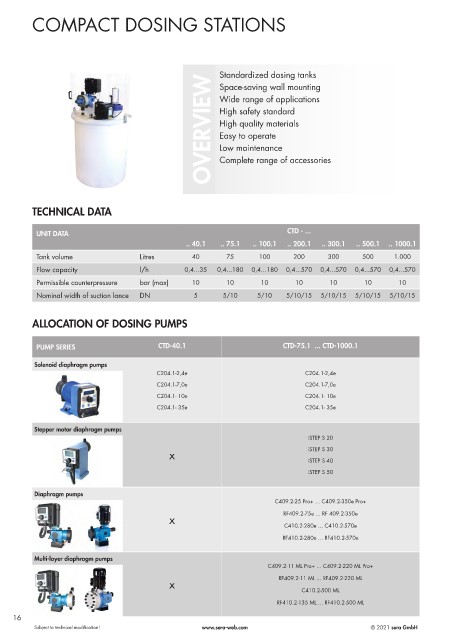

COMPACT DOSING STATIONS







                                                           Standardized dosing tanks
                                                        OVERVIEW  High safety standard
                                                           Space-saving wall mounting
                                                           Wide range of applications


                                                           High quality materials
                                                           Easy to operate
                                                           Low maintenance
                                                           Complete range of accessories







          TECHNICAL DATA


           UNIT DATA                                                         CTD - ...
                                                  .. 40.1  .. 75.1  .. 100.1  .. 200.1  .. 300.1  .. 500.1  .. 1000.1
           Tank volume                Litres        40       75      100      200      300      500      1.000

           Flow capacity              l/h         0,4...35  0,4...180  0,4...180  0,4...570  0,4...570  0,4...570  0,4...570
           Permissible counterpressure  bar (max)   10       10       10       10       10       10       10
           Nominal width of suction lance  DN       5       5/10     5/10   5/10/15  5/10/15   5/10/15  5/10/15


          ALLOCATION OF DOSING PUMPS


           PUMP SERIES                     CTD-40.1                         CTD-75.1  ... CTD-1000.1

          Solenoid diaphragm pumps
                                          C204.1-2,4e                            C204.1-2,4e
                                          C204.1-7,0e                            C204.1-7,0e
                                          C204.1- 10e                            C204.1- 10e
                                          C204.1- 35e                            C204.1- 35e


          Stepper motor diaphragm pumps
                                                                                  iSTEP S 20

                                              x                                   iSTEP S 30
                                                                                  iSTEP S 40
                                                                                  iSTEP S 50

          Diaphragm pumps
                                                                         C409.2-25 Pro+ ... C409.2-350e Pro+
                                              x                             RF409.2-75e ... RF 409.2-350e
                                                                            C410.2-280e ... C410.2-570e
                                                                           RF410.2-280e ... RF410.2-570e

          Multi-layer diaphragm pumps
                                                                        C409.2-11 ML Pro+ ... C409.2-220 ML Pro+

                                              x                           RF409.2-11 ML ... RF409.2-220 ML
                                                                                C410.2-500 ML
                                                                          RF410.2-135 ML ... RF410.2-500 ML

    16
