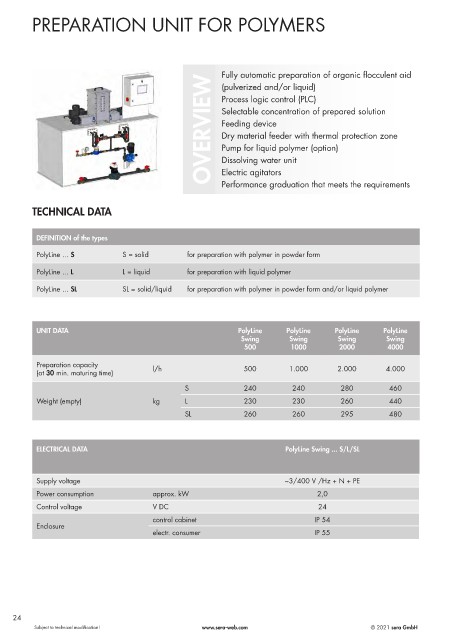

PREPARATION UNIT FOR POLYMERS
Fully automatic preparation of organic flocculent aid
OVERVIEW Selectable concentration of prepared solution
(pulverized and/or liquid)
Process logic control (PLC)
Feeding device
Dry material feeder with thermal protection zone
Pump for liquid polymer (option)
Dissolving water unit
Performance graduation that meets the requirements
TECHNICAL DATA Electric agitators
DEFINITION of the types
PolyLine ... S S = solid for preparation with polymer in powder form
PolyLine ... L L = liquid for preparation with liquid polymer
PolyLine ... SL SL = solid/liquid for preparation with polymer in powder form and/or liquid polymer
UNIT DATA PolyLine PolyLine PolyLine PolyLine
Swing Swing Swing Swing
500 1000 2000 4000
Preparation capacity l/h 500 1.000 2.000 4.000
(at 30 min. maturing time)
S 240 240 280 460
Weight (empty) kg L 230 230 260 440
SL 260 260 295 480
ELECTRICAL DATA PolyLine Swing ... S/L/SL
Supply voltage ~3/400 V /Hz + N + PE
Power consumption approx. kW 2,0
Control voltage V DC 24
control cabinet IP 54
Enclosure
electr. consumer IP 55
24
