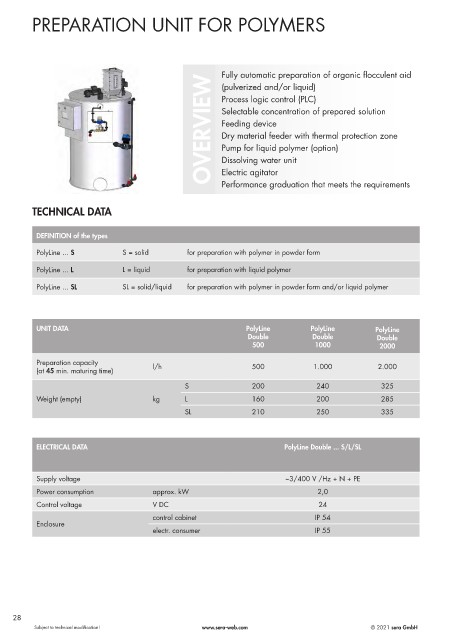

PREPARATION UNIT FOR POLYMERS
Fully automatic preparation of organic flocculent aid
OVERVIEW Selectable concentration of prepared solution
(pulverized and/or liquid)
Process logic control (PLC)
Feeding device
Dry material feeder with thermal protection zone
Pump for liquid polymer (option)
Dissolving water unit
Performance graduation that meets the requirements
TECHNICAL DATA Electric agitator
DEFINITION of the types
PolyLine ... S S = solid for preparation with polymer in powder form
PolyLine ... L L = liquid for preparation with liquid polymer
PolyLine ... SL SL = solid/liquid for preparation with polymer in powder form and/or liquid polymer
UNIT DATA PolyLine PolyLine PolyLine
Double Double Double
500 1000 2000
Preparation capacity l/h 500 1.000 2.000
(at 45 min. maturing time)
S 200 240 325
Weight (empty) kg L 160 200 285
SL 210 250 335
ELECTRICAL DATA PolyLine Double ... S/L/SL
Supply voltage ~3/400 V /Hz + N + PE
Power consumption approx. kW 2,0
Control voltage V DC 24
control cabinet IP 54
Enclosure
electr. consumer IP 55
