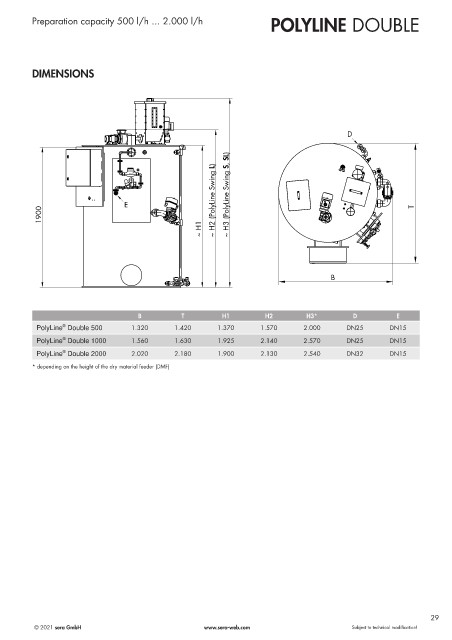

Preparation capacity 500 l/h ... 2.000 l/h POLYLINE DOUBLE
DIMENSIONS
D
E ~ H2 (PolyLine Swing L) ~ H3 (PolyLine Swing S, SL) T
1900
~ H1
B
B T H1 H2 H3* D E
®
PolyLine Double 500 1.320 1.420 1.370 1.570 2.000 DN25 DN15
PolyLine Double 1000 1.560 1.630 1.925 2.140 2.570 DN25 DN15
®
PolyLine Double 2000 2.020 2.180 1.900 2.130 2.540 DN32 DN15
®
* depending on the height of the dry material feeder (DMF)
