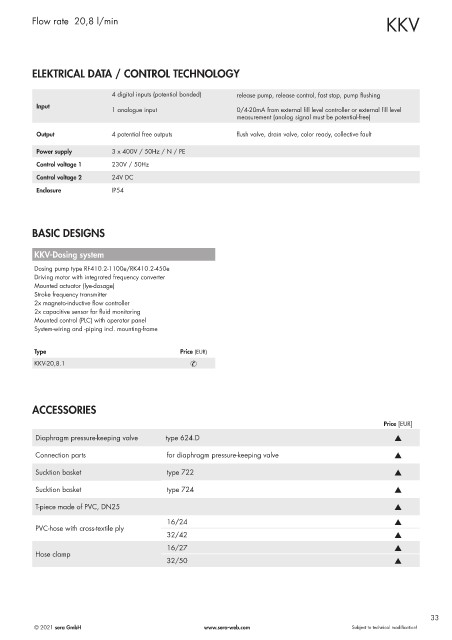

Flow rate 20,8 l/min KKV

ELEKTRICAL DATA / CONTROL TECHNOLOGY

4 digital inputs (potential bonded) release pump, release control, fast stop, pump flushing

Input 1 analogue input 0/4-20mA from external fill level controller or external fill level
measurement (analog signal must be potential-free)

Output 4 potential free outputs flush valve, drain valve, color ready, collective fault

Power supply 3 x 400V / 50Hz / N / PE
Control voltage 1 230V / 50Hz
Control voltage 2 24V DC

Enclosure IP54

BASIC DESIGNS

KKV-Dosing system

Dosing pump type RF410.2-1100e/RK410.2-450e
Driving motor with integrated frequency converter
Mounted actuator (lye-dosage)
Stroke frequency transmitter
2x magneto-inductive flow controller
2x capacitive sensor for fluid monitoring
Mounted control (PLC) with operator panel
System-wiring and -piping incl. mounting-frame

Type Price (EUR)
KKV-20,8.1 &

ACCESSORIES

Price [EUR]
Diaphragm pressure-keeping valve type 624.D s

Connection parts for diaphragm pressure-keeping valve s

Sucktion basket type 722 s

Sucktion basket type 724 s
T-piece made of PVC, DN25 s

16/24 s
PVC-hose with cross-textile ply
32/42 s
16/27 s
Hose clamp
32/50 s

33
