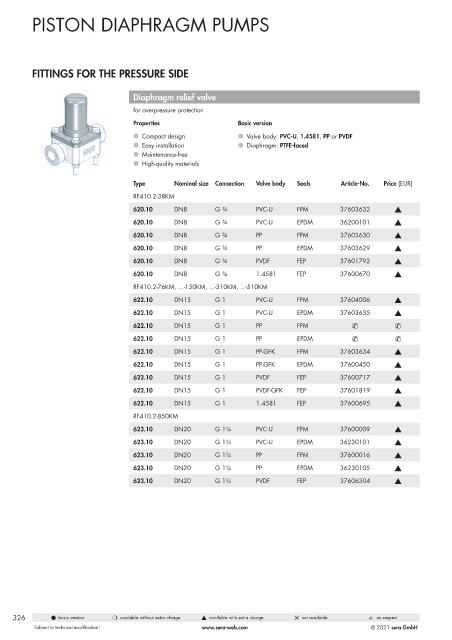

Page 326 - Pompy Dozujące 2021

PISTON DIAPHRAGM PUMPS

FITTINGS FOR THE PRESSURE SIDE

Diaphragm relief valve
for overpressure protection

Properties Basic version
l Compact design l Valve body: PVC-U, 1.4581, PP or PVDF
l Easy installation l Diaphragm: PTFE-faced
l Maintenance-free
l High-quality materials

Type Nominal size Connection Valve body Seals Article-No. Price (EUR)
RF410.2-38KM
620.10 DN8 G ¾ PVC-U FPM 37603632 s
620.10 DN8 G ¾ PVC-U EPDM 36200101 s
620.10 DN8 G ¾ PP FPM 37603630 s
620.10 DN8 G ¾ PP EPDM 37603629 s
620.10 DN8 G ¾ PVDF FEP 37601792 s
620.10 DN8 G ¾ 1.4581 FEP 37600670 s
RF410.2-76KM, ...-150KM, ...-310KM, ...-510KM

622.10 DN15 G 1 PVC-U FPM 37604006 s
622.10 DN15 G 1 PVC-U EPDM 37603635 s
622.10 DN15 G 1 PP FPM & &
622.10 DN15 G 1 PP EPDM & &
622.10 DN15 G 1 PP-GFK FPM 37603634 s
622.10 DN15 G 1 PP-GFK EPDM 37600450 s
622.10 DN15 G 1 PVDF FEP 37600717 s

622.10 DN15 G 1 PVDF-GFK FEP 37601819 s
622.10 DN15 G 1 1.4581 FEP 37600695 s
RF410.2-850KM
623.10 DN20 G 1¼ PVC-U FPM 37600009 s
623.10 DN20 G 1¼ PVC-U EPDM 36230101 s
623.10 DN20 G 1¼ PP FPM 37600016 s
623.10 DN20 G 1¼ PP EPDM 36230105 s
623.10 DN20 G 1¼ PVDF FEP 37606304 s

326 l basic version m available without extra charge s available with extra charge 5 not available & on request
