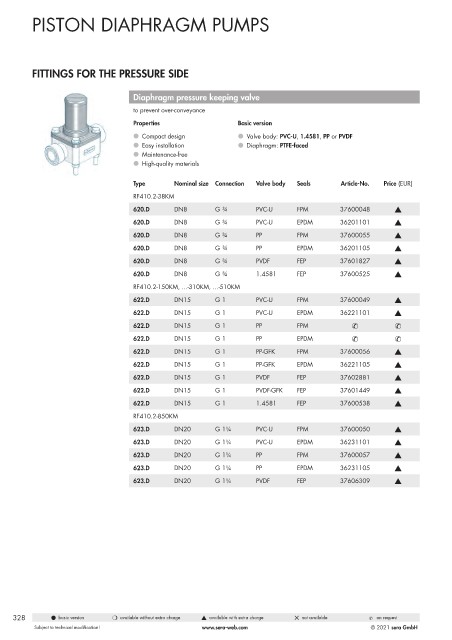

Page 328 - Pompy Dozujące 2021

PISTON DIAPHRAGM PUMPS

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pressure keeping valve
to prevent over-conveyance

Properties Basic version
l Compact design l Valve body: PVC-U, 1.4581, PP or PVDF
l Easy installation l Diaphragm: PTFE-faced
l Maintenance-free
l High-quality materials

Type Nominal size Connection Valve body Seals Article-No. Price (EUR)
RF410.2-38KM
620.D DN8 G ¾ PVC-U FPM 37600048 s
620.D DN8 G ¾ PVC-U EPDM 36201101 s
620.D DN8 G ¾ PP FPM 37600055 s
620.D DN8 G ¾ PP EPDM 36201105 s
620.D DN8 G ¾ PVDF FEP 37601827 s
620.D DN8 G ¾ 1.4581 FEP 37600525 s
RF410.2-150KM, ...-310KM, ...-510KM

622.D DN15 G 1 PVC-U FPM 37600049 s
622.D DN15 G 1 PVC-U EPDM 36221101 s
622.D DN15 G 1 PP FPM & &
622.D DN15 G 1 PP EPDM & &
622.D DN15 G 1 PP-GFK FPM 37600056 s
622.D DN15 G 1 PP-GFK EPDM 36221105 s
622.D DN15 G 1 PVDF FEP 37602881 s

622.D DN15 G 1 PVDF-GFK FEP 37601449 s
622.D DN15 G 1 1.4581 FEP 37600538 s
RF410.2-850KM
623.D DN20 G 1¼ PVC-U FPM 37600050 s
623.D DN20 G 1¼ PVC-U EPDM 36231101 s
623.D DN20 G 1¼ PP FPM 37600057 s
623.D DN20 G 1¼ PP EPDM 36231105 s
623.D DN20 G 1¼ PVDF FEP 37606309 s

328 l basic version m available without extra charge s available with extra charge 5 not available & on request
