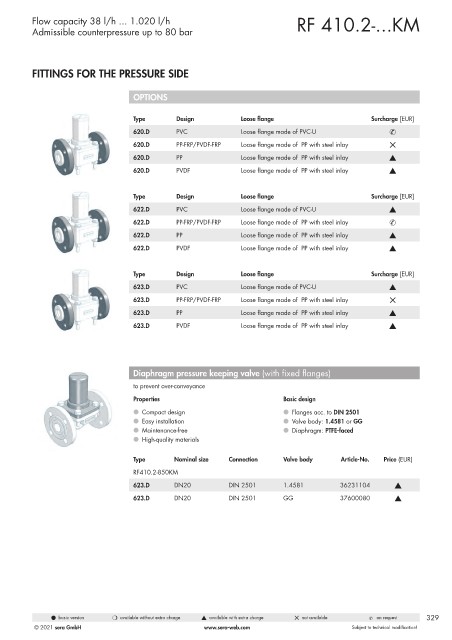

Page 329 - Pompy Dozujące 2021

Flow capacity 38 l/h ... 1.020 l/h RF 410.2-...KM
Admissible counterpressure up to 80 bar

FITTINGS FOR THE PRESSURE SIDE

OPTIONS

Type Design Loose flange Surcharge [EUR]
620.D PVC Loose flange made of PVC-U &
620.D PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay 5
620.D PP Loose flange made of PP with steel inlay s
620.D PVDF Loose flange made of PP with steel inlay s

Type Design Loose flange Surcharge [EUR]
622.D PVC Loose flange made of PVC-U s
622.D PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay &
622.D PP Loose flange made of PP with steel inlay s
622.D PVDF Loose flange made of PP with steel inlay s

Type Design Loose flange Surcharge [EUR]
623.D PVC Loose flange made of PVC-U s

623.D PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay 5
623.D PP Loose flange made of PP with steel inlay s
623.D PVDF Loose flange made of PP with steel inlay s

Diaphragm pressure keeping valve (with fixed flanges)

to prevent over-conveyance
Properties Basic design
l Compact design l Flanges acc. to DIN 2501
l Easy installation l Valve body: 1.4581 or GG
l Maintenance-free l Diaphragm: PTFE-faced
l High-quality materials

Type Nominal size Connection Valve body Article-No. Price (EUR)
RF410.2-850KM
623.D DN20 DIN 2501 1.4581 36231104 s
623.D DN20 DIN 2501 GG 37600080 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 329
