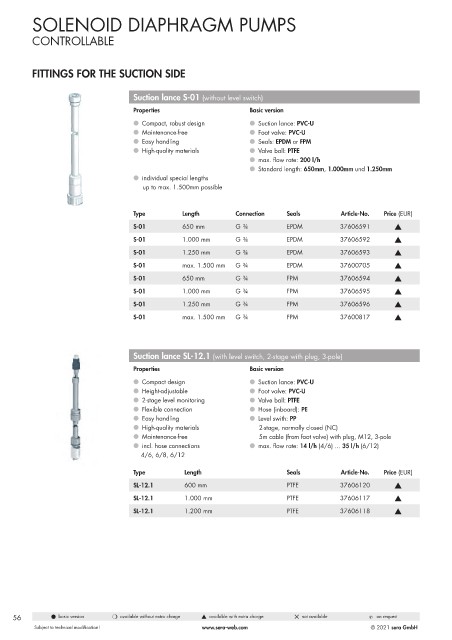

Page 56 - Pompy Dozujące 2021

SOLENOID DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE SUCTION SIDE

Suction lance S-01 (without level switch)
Properties Basic version

l Compact, robust design l Suction lance: PVC-U
l Maintenance-free l Foot valve: PVC-U
l Easy handling l Seals: EPDM or FPM
l High-quality materials l Valve ball: PTFE
l max. flow rate: 200 l/h
l Standard length: 650mm, 1.000mm und 1.250mm
l individual special lengths
up to max. 1.500mm possible

Type Length Connection Seals Article-No. Price (EUR)

S-01 650 mm G ¾ EPDM 37606591 s
S-01 1.000 mm G ¾ EPDM 37606592 s
S-01 1.250 mm G ¾ EPDM 37606593 s
S-01 max. 1.500 mm G ¾ EPDM 37600705 s
S-01 650 mm G ¾ FPM 37606594 s
S-01 1.000 mm G ¾ FPM 37606595 s
S-01 1.250 mm G ¾ FPM 37606596 s

S-01 max. 1.500 mm G ¾ FPM 37600817 s

Suction lance SL-12.1 (with level switch, 2-stage with plug, 3-pole)
Properties Basic version
l Compact design l Suction lance: PVC-U
l Height-adjustable l Foot valve: PVC-U
l 2-stage level monitoring l Valve ball: PTFE
l Flexible connection l Hose (inboard): PE
l Easy handling l Level swith: PP
l High-quality materials 2-stage, normally closed (NC)
l Maintenance-free 5m cable (from foot valve) with plug, M12, 3-pole
l incl. hose connections l max. flow rate: 14 l/h (4/6) ... 35 l/h (6/12)
4/6, 6/8, 6/12

Type Length Seals Article-No. Price (EUR)
SL-12.1 600 mm PTFE 37606120 s
SL-12.1 1.000 mm PTFE 37606117 s
SL-12.1 1.200 mm PTFE 37606118 s

56 l basic version m available without extra charge s available with extra charge 5 not available & on request
