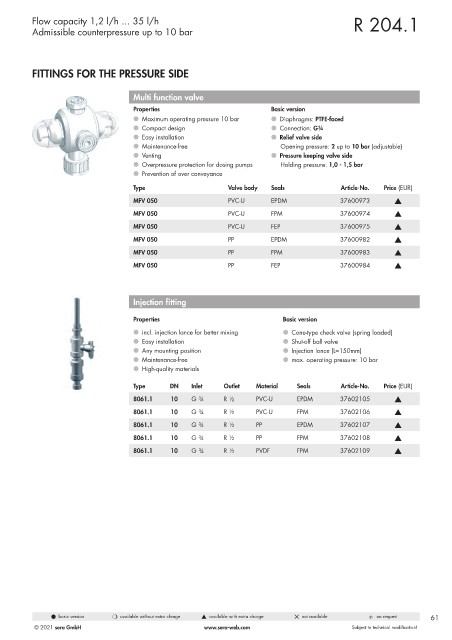

Page 61 - Pompy Dozujące 2021

Flow capacity 1,2 l/h ... 35 l/h R 204.1
Admissible counterpressure up to 10 bar

FITTINGS FOR THE PRESSURE SIDE

Multi function valve
Properties Basic version
l Maximum operating pressure 10 bar l Diaphragms: PTFE-faced
l Compact design l Connection: G¾
l Easy installation l Relief valve side
l Maintenance-free Opening pressure: 2 up to 10 bar (adjustable)
l Venting l Pressure keeping valve side
l Overpressure protection for dosing pumps Holding pressure: 1,0 - 1,5 bar
l Prevention of over conveyance
Type Valve body Seals Article-No. Price (EUR)
MFV 050 PVC-U EPDM 37600973 s
MFV 050 PVC-U FPM 37600974 s

MFV 050 PVC-U FEP 37600975 s
MFV 050 PP EPDM 37600982 s
MFV 050 PP FPM 37600983 s
MFV 050 PP FEP 37600984 s

Injection fitting

Properties Basic version
l incl. injection lance for better mixing l Cone-type check valve (spring loaded)
l Easy installation l Shut-off ball valve
l Any mounting position l Injection lance (L=150mm)
l Maintenance-free l max. operating pressure: 10 bar
l High-quality materials

Type DN Inlet Outlet Material Seals Article-No. Price (EUR)
8061.1 10 G ¾ R ½ PVC-U EPDM 37602105 s
8061.1 10 G ¾ R ½ PVC-U FPM 37602106 s
8061.1 10 G ¾ R ½ PP EPDM 37602107 s
8061.1 10 G ¾ R ½ PP FPM 37602108 s
8061.1 10 G ¾ R ½ PVDF FPM 37602109 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 61
