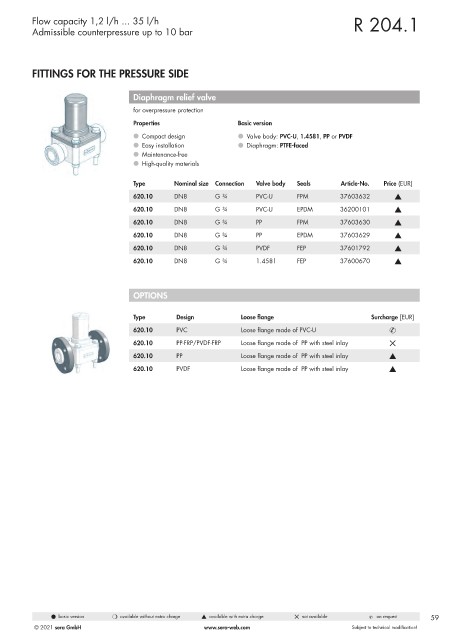

Page 59 - Pompy Dozujące 2021

Flow capacity 1,2 l/h ... 35 l/h R 204.1
Admissible counterpressure up to 10 bar

FITTINGS FOR THE PRESSURE SIDE

Diaphragm relief valve
for overpressure protection

Properties Basic version
l Compact design l Valve body: PVC-U, 1.4581, PP or PVDF
l Easy installation l Diaphragm: PTFE-faced
l Maintenance-free
l High-quality materials

Type Nominal size Connection Valve body Seals Article-No. Price (EUR)
620.10 DN8 G ¾ PVC-U FPM 37603632 s
620.10 DN8 G ¾ PVC-U EPDM 36200101 s
620.10 DN8 G ¾ PP FPM 37603630 s
620.10 DN8 G ¾ PP EPDM 37603629 s
620.10 DN8 G ¾ PVDF FEP 37601792 s
620.10 DN8 G ¾ 1.4581 FEP 37600670 s

OPTIONS

Type Design Loose flange Surcharge [EUR]
620.10 PVC Loose flange made of PVC-U &
620.10 PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay 5
620.10 PP Loose flange made of PP with steel inlay s
620.10 PVDF Loose flange made of PP with steel inlay s

l basic version m available without extra charge s available with extra charge 5 not available & on request 59
