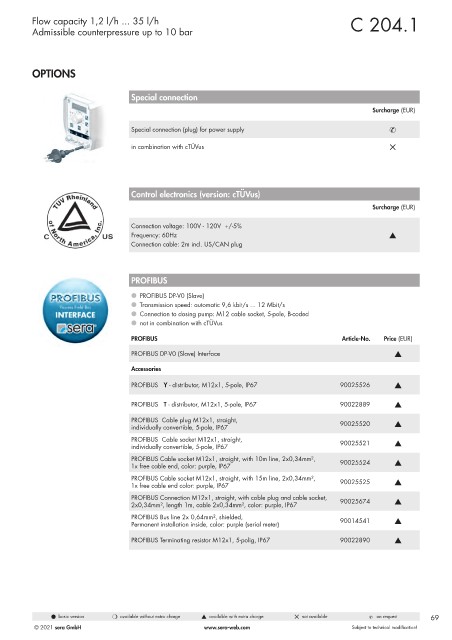

Flow capacity 1,2 l/h ... 35 l/h C 204.1
Admissible counterpressure up to 10 bar

OPTIONS

Special connection
Surcharge (EUR)

Special connection (plug) for power supply &
in combination with cTÜVus 5

Control electronics (version: cTÜVus)
Surcharge (EUR)

Connection voltage: 100V - 120V +/-5%
Frequency: 60Hz s
Connection cable: 2m incl. US/CAN plug

PROFIBUS

l PROFIBUS DP-V0 (Slave)
l Transmission speed: automatic 9,6 kbit/s ... 12 Mbit/s
l Connection to dosing pump: M12 cable socket, 5-pole, B-coded
l not in combination with cTÜVus

PROFIBUS Article-No. Price (EUR)

PROFIBUS DP-V0 (Slave) Interface s
Accessories

PROFIBUS Y - distributor, M12x1, 5-pole, IP67 90025526 s

PROFIBUS T - distributor, M12x1, 5-pole, IP67 90022889 s
PROFIBUS Cable plug M12x1, straight,
individually convertible, 5-pole, IP67 90025520 s
PROFIBUS Cable socket M12x1, straight, 90025521
individually convertible, 5-pole, IP67 s
PROFIBUS Cable socket M12x1, straight, with 10m line, 2x0,34mm²,
1x free cable end, color: purple, IP67 90025524 s
PROFIBUS Cable socket M12x1, straight, with 15m line, 2x0,34mm²,
1x free cable end color: purple, IP67 90025525 s
PROFIBUS Connection M12x1, straight, with cable plug and cable socket, 90025674
2x0,34mm², length 1m, cable 2x0,34mm², color: purple, IP67 s
PROFIBUS Bus line 2x 0,64mm², shielded, 90014541
Permanent installation inside, color: purple (serial meter) s
PROFIBUS Terminating resistor M12x1, 5-polig, IP67 90022890 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 69
