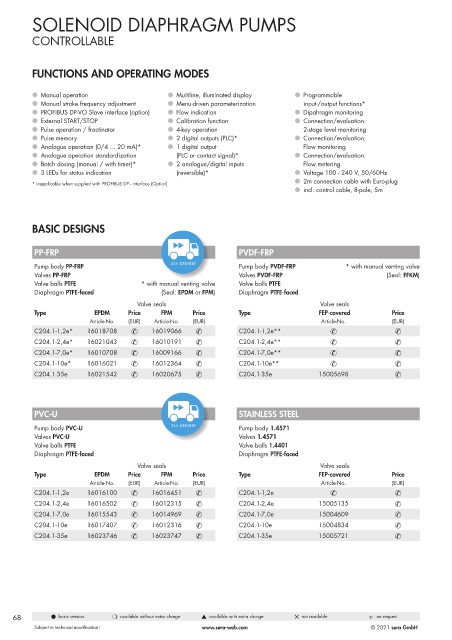

SOLENOID DIAPHRAGM PUMPS

CONTROLLABLE

FUNCTIONS AND OPERATING MODES

l Manual operation l Multiline, illuminated display l Programmable
l Manual stroke frequency adjustment l Menu-driven parameterization input-/output functions*
l PROFIBUS DP-VO Slave interface (option) l Flow indication l Dipahragm monitoring
l External START/STOP l Calibration function l Connection/evaluation:
l Pulse operation / fractinator l 4-key operation 2-stage level monitoring
l Pulse memory l 2 digital outputs (PLC)* l Connection/evaluation:
l Analogue operation (0/4 ... 20 mA)* l 1 digital output Flow monitoring
l Analogue operation standardization (PLC or contact signal)* l Connection/evaluation:
l Batch dosing (manual / with timer)* l 2 analogue/digital inputs Flow metering
l 3 LEDs for status indication (reversible)* l Voltage 100 - 240 V, 50/60Hz
* inapplicable when supplied with PROFIBUS DP - interface (Option) l 2m connection cable with Euro-plug
l incl. control cable, 8-pole, 5m

BASIC DESIGNS

PP-FRP PVDF-FRP
Pump body PP-FRP Pump body PVDF-FRP * with manual venting valve
Valves PP-FRP Valves PVDF-FRP (Seal: FFKM)
Valve balls PTFE * with manual venting valve Valve balls PTFE
Diaphragm PTFE-faced (Seal: EPDM or FPM) Diaphragm PTFE-faced
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C204.1-1,2e* 16018708 & 16019066 & C204.1-1,2e** & &
C204.1-2,4e* 16021043 & 16010191 & C204.1-2,4e** & &
C204.1-7,0e* 16010708 & 16009166 & C204.1-7,0e** & &
C204.1-10e* 16016021 & 16012364 & C204.1-10e** & &
C204.1-35e 16021542 & 16020675 & C204.1-35e 15005698 &

PVC-U STAINLESS STEEL

Pump body PVC-U Pump body 1.4571
Valves PVC-U Valves 1.4571
Valve balls PTFE Valve balls 1.4401
Diaphragm PTFE-faced Diaphragm PTFE-faced
Valve seals Valve seals
Type EPDM Price FPM Price Type FEP-covered Price
Article-No. (EUR) Article-No. (EUR) Article-No. (EUR)
C204.1-1,2e 16016100 & 16016451 & C204.1-1,2e & &
C204.1-2,4e 16016502 & 16012315 & C204.1-2,4e 15005135 &
C204.1-7,0e 16015543 & 16014969 & C204.1-7,0e 15004609 &
C204.1-10e 16017407 & 16012316 & C204.1-10e 15004834 &
C204.1-35e 16023746 & 16023747 & C204.1-35e 15005721 &

68 l basic version m available without extra charge s available with extra charge 5 not available & on request
