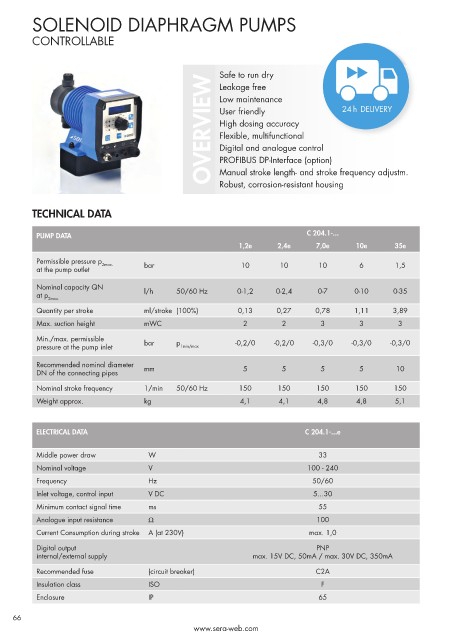

SOLENOID DIAPHRAGM PUMPS

CONTROLLABLE

Safe to run dry
OVERVIEW User friendly
Leakage free
Low maintenance

High dosing accuracy
Flexible, multifunctional
Digital and analogue control
PROFIBUS DP-Interface (option)

Robust, corrosion-resistant housing

TECHNICAL DATA Manual stroke length- and stroke frequency adjustm.

PUMP DATA C 204.1-...
1,2e 2,4e 7,0e 10e 35e
Permissible pressure p 2max. bar 10 10 10 6 1,5
at the pump outlet
Nominal capacity QN l/h 50/60 Hz 0-1,2 0-2,4 0-7 0-10 0-35
at p 2max.
Quantity per stroke ml/stroke (100%) 0,13 0,27 0,78 1,11 3,89
Max. suction height mWC 2 2 3 3 3

Min./max. permissible bar p -0,2/0 -0,2/0 -0,3/0 -0,3/0 -0,3/0
pressure at the pump inlet 1min/max

Recommended nominal diameter mm 5 5 5 5 10
DN of the connecting pipes

Nominal stroke frequency 1/min 50/60 Hz 150 150 150 150 150
Weight approx. kg 4,1 4,1 4,8 4,8 5,1

ELECTRICAL DATA C 204.1-...e

Middle power draw W 33
Nominal voltage V 100 - 240
Frequency Hz 50/60
Inlet voltage, control input V DC 5...30
Minimum contact signal time ms 55

Analogue input resistance Ω 100
Current Consumption during stroke A (at 230V) max. 1,0
Digital output PNP
internal/external supply max. 15V DC, 50mA / max. 30V DC, 350mA
Recommended fuse (circuit breaker) C2A
Insulation class ISO F
Enclosure IP 65
