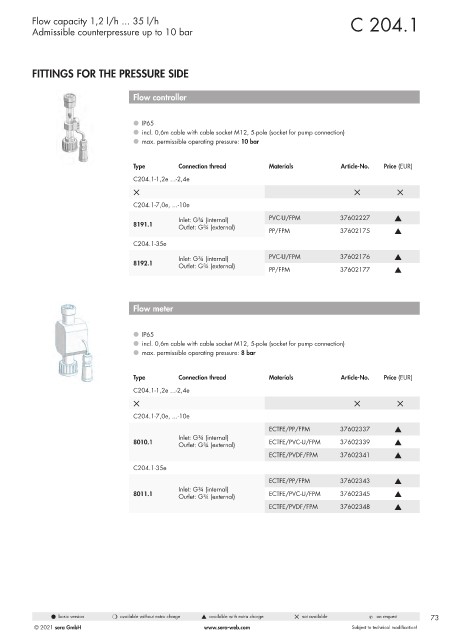

Page 73 - Pompy Dozujące 2021

Flow capacity 1,2 l/h ... 35 l/h C 204.1
Admissible counterpressure up to 10 bar

FITTINGS FOR THE PRESSURE SIDE

Flow controller

l IP65
l incl. 0,6m cable with cable socket M12, 5-pole (socket for pump connection)
l max. permissible operating pressure: 10 bar

Type Connection thread Materials Article-No. Price (EUR)
C204.1-1,2e ...-2,4e
5 5 5
C204.1-7,0e, ...-10e

Inlet: G¾ (internal) PVC-U/FPM 37602227 s
8191.1 Outlet: G¾ (external) PP/FPM 37602175 s
C204.1-35e

Inlet: G¾ (internal) PVC-U/FPM 37602176 s
8192.1 Outlet: G¾ (external) PP/FPM 37602177 s

Flow meter

l IP65
l incl. 0,6m cable with cable socket M12, 5-pole (socket for pump connection)
l max. permissible operating pressure: 8 bar

Type Connection thread Materials Article-No. Price (EUR)

C204.1-1,2e ...-2,4e
5 5 5
C204.1-7,0e, ...-10e
ECTFE/PP/FPM 37602337 s
Inlet: G¾ (internal)
8010.1 Outlet: G¾ (external) ECTFE/PVC-U/FPM 37602339 s
ECTFE/PVDF/FPM 37602341 s
C204.1-35e
ECTFE/PP/FPM 37602343 s
Inlet: G¾ (internal)
8011.1 Outlet: G¾ (external) ECTFE/PVC-U/FPM 37602345 s
ECTFE/PVDF/FPM 37602348 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 73
