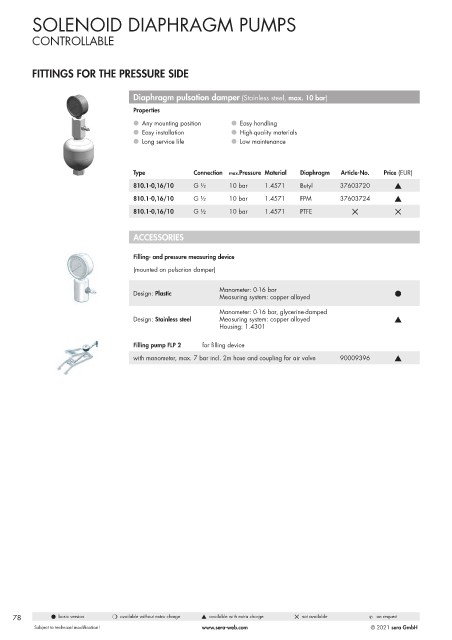

SOLENOID DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Stainless steel, max. 10 bar)
Properties

l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max.Pressure Material Diaphragm Article-No. Price (EUR)
810.1-0,16/10 G ½ 10 bar 1.4571 Butyl 37603720 s
810.1-0,16/10 G ½ 10 bar 1.4571 FPM 37603724 s
810.1-0,16/10 G ½ 10 bar 1.4571 PTFE 5 5

ACCESSORIES

Filling- and pressure measuring device
(mounted on pulsation damper)

Manometer: 0-16 bar
Design: Plastic Measuring system: copper alloyed l

Manometer: 0-16 bar, glycerine-damped
Design: Stainless steel Measuring system: copper alloyed s
Housing: 1.4301

Filling pump FLP 2 for filling device
with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

78 l basic version m available without extra charge s available with extra charge 5 not available & on request
