Flow capacity 60 l/h ... 1.500 l/h CVD1

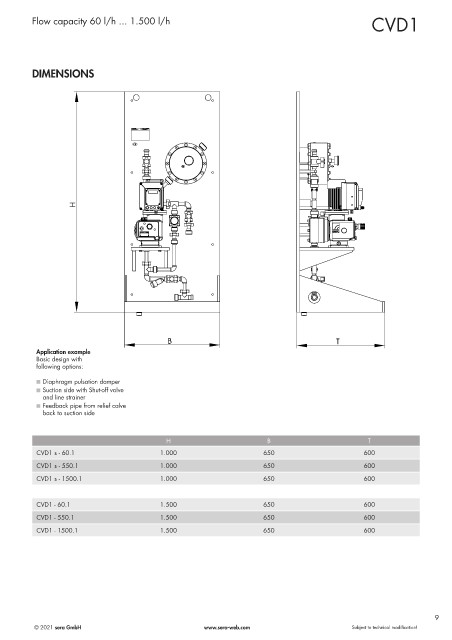

DIMENSIONS

H

B T
Application example
Basic design with
following options:
■ Diaphragm pulsation damper
■ Suction side with Shut-off valve
and line strainer
■ Feedback pipe from relief calve
back to suction side

H B T
CVD1 s - 60.1 1.000 650 600
CVD1 s - 550.1 1.000 650 600
CVD1 s - 1500.1 1.000 650 600

CVD1 - 60.1 1.500 650 600
CVD1 - 550.1 1.500 650 600
CVD1 - 1500.1 1.500 650 600
