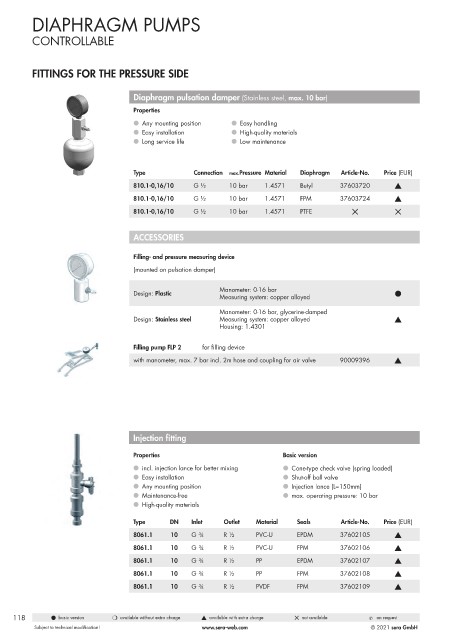

Page 118 - Pompy Dozujące 2021

DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Stainless steel, max. 10 bar)
Properties

l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max.Pressure Material Diaphragm Article-No. Price (EUR)
810.1-0,16/10 G ½ 10 bar 1.4571 Butyl 37603720 s
810.1-0,16/10 G ½ 10 bar 1.4571 FPM 37603724 s
810.1-0,16/10 G ½ 10 bar 1.4571 PTFE 5 5

ACCESSORIES

Filling- and pressure measuring device
(mounted on pulsation damper)

Manometer: 0-16 bar
Design: Plastic Measuring system: copper alloyed l

Manometer: 0-16 bar, glycerine-damped
Design: Stainless steel Measuring system: copper alloyed s
Housing: 1.4301

Filling pump FLP 2 for filling device
with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

Injection fitting

Properties Basic version
l incl. injection lance for better mixing l Cone-type check valve (spring loaded)
l Easy installation l Shut-off ball valve
l Any mounting position l Injection lance (L=150mm)
l Maintenance-free l max. operating pressure: 10 bar
l High-quality materials

Type DN Inlet Outlet Material Seals Article-No. Price (EUR)
8061.1 10 G ¾ R ½ PVC-U EPDM 37602105 s
8061.1 10 G ¾ R ½ PVC-U FPM 37602106 s

8061.1 10 G ¾ R ½ PP EPDM 37602107 s
8061.1 10 G ¾ R ½ PP FPM 37602108 s
8061.1 10 G ¾ R ½ PVDF FPM 37602109 s

118 l basic version m available without extra charge s available with extra charge 5 not available & on request
