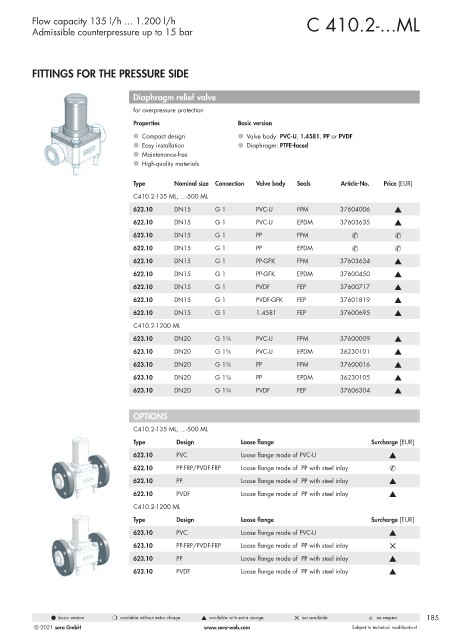

Page 185 - Pompy Dozujące 2021

Flow capacity 135 l/h ... 1.200 l/h C 410.2-...ML
Admissible counterpressure up to 15 bar

FITTINGS FOR THE PRESSURE SIDE

Diaphragm relief valve
for overpressure protection

Properties Basic version
l Compact design l Valve body: PVC-U, 1.4581, PP or PVDF
l Easy installation l Diaphragm: PTFE-faced
l Maintenance-free
l High-quality materials

Type Nominal size Connection Valve body Seals Article-No. Price (EUR)
C410.2-135 ML, ...-500 ML
622.10 DN15 G 1 PVC-U FPM 37604006 s
622.10 DN15 G 1 PVC-U EPDM 37603635 s
622.10 DN15 G 1 PP FPM & &
622.10 DN15 G 1 PP EPDM & &
622.10 DN15 G 1 PP-GFK FPM 37603634 s
622.10 DN15 G 1 PP-GFK EPDM 37600450 s
622.10 DN15 G 1 PVDF FEP 37600717 s

622.10 DN15 G 1 PVDF-GFK FEP 37601819 s
622.10 DN15 G 1 1.4581 FEP 37600695 s
C410.2-1200 ML
623.10 DN20 G 1¼ PVC-U FPM 37600009 s
623.10 DN20 G 1¼ PVC-U EPDM 36230101 s
623.10 DN20 G 1¼ PP FPM 37600016 s
623.10 DN20 G 1¼ PP EPDM 36230105 s

623.10 DN20 G 1¼ PVDF FEP 37606304 s

OPTIONS
C410.2-135 ML, ...-500 ML
Type Design Loose flange Surcharge [EUR]
622.10 PVC Loose flange made of PVC-U s
622.10 PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay &
622.10 PP Loose flange made of PP with steel inlay s
622.10 PVDF Loose flange made of PP with steel inlay s

C410.2-1200 ML
Type Design Loose flange Surcharge [EUR]
623.10 PVC Loose flange made of PVC-U s
623.10 PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay 5
623.10 PP Loose flange made of PP with steel inlay s
623.10 PVDF Loose flange made of PP with steel inlay s

l basic version m available without extra charge s available with extra charge 5 not available & on request 185
