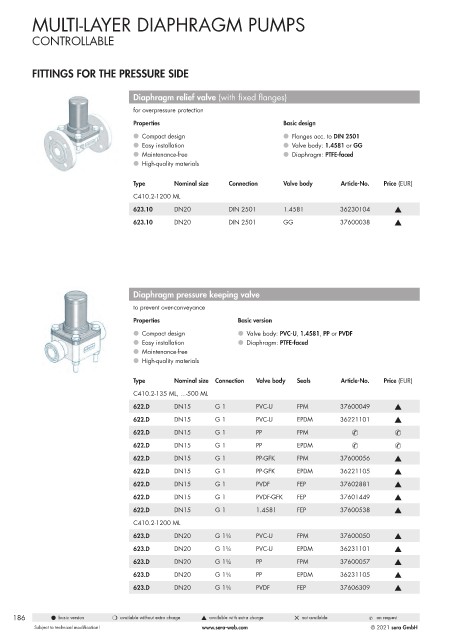

Page 186 - Pompy Dozujące 2021

MULTI-LAYER DIAPHRAGM PUMPS

CONTROLLABLE

FITTINGS FOR THE PRESSURE SIDE

Diaphragm relief valve (with fixed flanges)
for overpressure protection

Properties Basic design
l Compact design l Flanges acc. to DIN 2501
l Easy installation l Valve body: 1.4581 or GG
l Maintenance-free l Diaphragm: PTFE-faced
l High-quality materials

Type Nominal size Connection Valve body Article-No. Price (EUR)
C410.2-1200 ML
623.10 DN20 DIN 2501 1.4581 36230104 s
623.10 DN20 DIN 2501 GG 37600038 s

Diaphragm pressure keeping valve
to prevent over-conveyance
Properties Basic version
l Compact design l Valve body: PVC-U, 1.4581, PP or PVDF
l Easy installation l Diaphragm: PTFE-faced
l Maintenance-free
l High-quality materials

Type Nominal size Connection Valve body Seals Article-No. Price (EUR)
C410.2-135 ML, ...-500 ML
622.D DN15 G 1 PVC-U FPM 37600049 s
622.D DN15 G 1 PVC-U EPDM 36221101 s
622.D DN15 G 1 PP FPM & &
622.D DN15 G 1 PP EPDM & &

622.D DN15 G 1 PP-GFK FPM 37600056 s
622.D DN15 G 1 PP-GFK EPDM 36221105 s
622.D DN15 G 1 PVDF FEP 37602881 s
622.D DN15 G 1 PVDF-GFK FEP 37601449 s
622.D DN15 G 1 1.4581 FEP 37600538 s
C410.2-1200 ML
623.D DN20 G 1¼ PVC-U FPM 37600050 s

623.D DN20 G 1¼ PVC-U EPDM 36231101 s
623.D DN20 G 1¼ PP FPM 37600057 s
623.D DN20 G 1¼ PP EPDM 36231105 s
623.D DN20 G 1¼ PVDF FEP 37606309 s

186 l basic version m available without extra charge s available with extra charge 5 not available & on request
