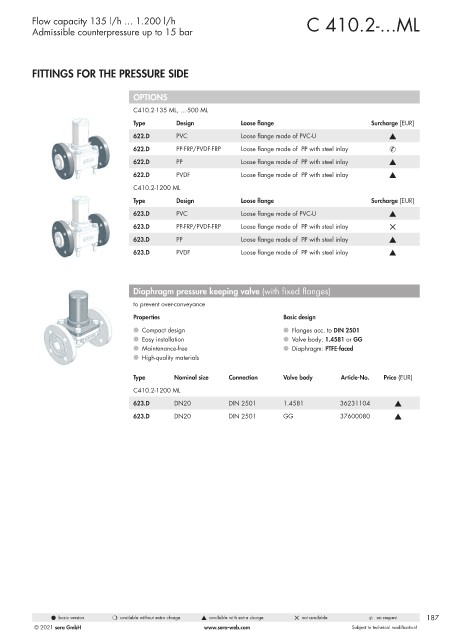

Page 187 - Pompy Dozujące 2021

Flow capacity 135 l/h ... 1.200 l/h C 410.2-...ML
Admissible counterpressure up to 15 bar

FITTINGS FOR THE PRESSURE SIDE

OPTIONS
C410.2-135 ML, ...-500 ML

Type Design Loose flange Surcharge [EUR]
622.D PVC Loose flange made of PVC-U s
622.D PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay &
622.D PP Loose flange made of PP with steel inlay s
622.D PVDF Loose flange made of PP with steel inlay s
C410.2-1200 ML
Type Design Loose flange Surcharge [EUR]
623.D PVC Loose flange made of PVC-U s

623.D PP-FRP/PVDF-FRP Loose flange made of PP with steel inlay 5
623.D PP Loose flange made of PP with steel inlay s
623.D PVDF Loose flange made of PP with steel inlay s

Diaphragm pressure keeping valve (with fixed flanges)
to prevent over-conveyance

Properties Basic design
l Compact design l Flanges acc. to DIN 2501
l Easy installation l Valve body: 1.4581 or GG
l Maintenance-free l Diaphragm: PTFE-faced
l High-quality materials

Type Nominal size Connection Valve body Article-No. Price (EUR)

C410.2-1200 ML
623.D DN20 DIN 2501 1.4581 36231104 s
623.D DN20 DIN 2501 GG 37600080 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 187
