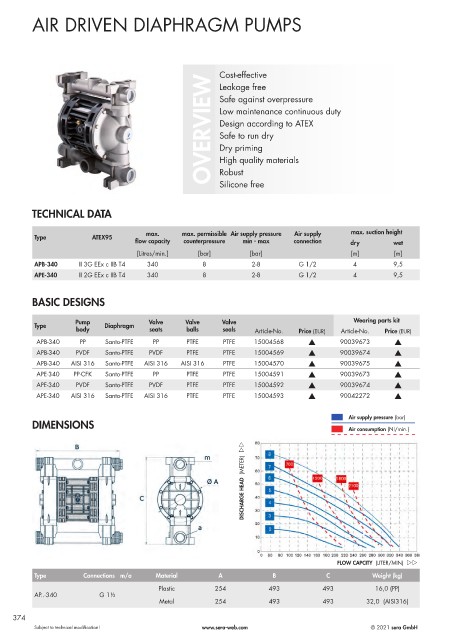

Page 374 - Pompy Dozujące 2021

AIR DRIVEN DIAPHRAGM PUMPS

Cost-effective
OVERVIEW Low maintenance continuous duty
Leakage free
Safe against overpressure

Design according to ATEX
Safe to run dry
Dry priming
High quality materials

Silicone free

TECHNICAL DATA Robust

max. max. permissible Air supply pressure Air supply max. suction height
Type ATEX95
flow capacity counterpressure min - max connection dry wet
[Litres/min.] [bar] [bar] [m] [m]
APB-340 II 3G EEx c IIB T4 340 8 2-8 G 1/2 4 9,5
APE-340 II 2G EEx c IIB T4 340 8 2-8 G 1/2 4 9,5

BASIC DESIGNS

Pump Valve Valve Valve Wearing parts kit
Type Diaphragm
body seats balls seals Article-No. Price (EUR) Article-No. Price (EUR)
APB-340 PP Santo-PTFE PP PTFE PTFE 15004568 s 90039673 s
APB-340 PVDF Santo-PTFE PVDF PTFE PTFE 15004569 s 90039674 s
APB-340 AISI 316 Santo-PTFE AISI 316 AISI 316 PTFE 15004570 s 90039675 s
APE-340 PP-CFK Santo-PTFE PP PTFE PTFE 15004591 s 90039673 s
APE-340 PVDF Santo-PTFE PVDF PTFE PTFE 15004592 s 90039674 s
APE-340 AISI 316 Santo-PTFE AISI 316 PTFE PTFE 15004593 s 90042272 s

Air supply pressure (bar)
DIMENSIONS Air consumption (Nl/min.)

DISCHARGE HEAD (METER) ww

FLOW CAPCITY (LITER/MIN) ww
Type Connections m/a Material A B C Weight (kg)
Plastic 254 493 493 16,0 (PP)
AP..-340 G 1½
Metal 254 493 493 32,0 (AISI316)

374
