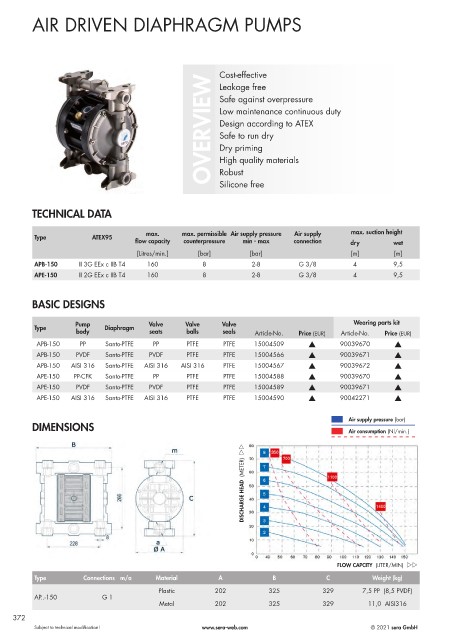

AIR DRIVEN DIAPHRAGM PUMPS

Cost-effective
OVERVIEW Low maintenance continuous duty
Leakage free
Safe against overpressure

Design according to ATEX
Safe to run dry
Dry priming
High quality materials

Silicone free

TECHNICAL DATA Robust

max. max. permissible Air supply pressure Air supply max. suction height
Type ATEX95
flow capacity counterpressure min - max connection dry wet
[Litres/min.] [bar] [bar] [m] [m]
APB-150 II 3G EEx c IIB T4 160 8 2-8 G 3/8 4 9,5
APE-150 II 2G EEx c IIB T4 160 8 2-8 G 3/8 4 9,5

BASIC DESIGNS

Pump Valve Valve Valve Wearing parts kit
Type Diaphragm
body seats balls seals Article-No. Price (EUR) Article-No. Price (EUR)
APB-150 PP Santo-PTFE PP PTFE PTFE 15004509 s 90039670 s
APB-150 PVDF Santo-PTFE PVDF PTFE PTFE 15004566 s 90039671 s
APB-150 AISI 316 Santo-PTFE AISI 316 AISI 316 PTFE 15004567 s 90039672 s
APE-150 PP-CFK Santo-PTFE PP PTFE PTFE 15004588 s 90039670 s
APE-150 PVDF Santo-PTFE PVDF PTFE PTFE 15004589 s 90039671 s
APE-150 AISI 316 Santo-PTFE AISI 316 PTFE PTFE 15004590 s 90042271 s

Air supply pressure (bar)
DIMENSIONS Air consumption (Nl/min.)

DISCHARGE HEAD (METER) ww

FLOW CAPCITY (LITER/MIN) ww
Type Connections m/a Material A B C Weight (kg)
Plastic 202 325 329 7,5 PP (8,5 PVDF)
AP..-150 G 1
Metal 202 325 329 11,0 AISI316
372
