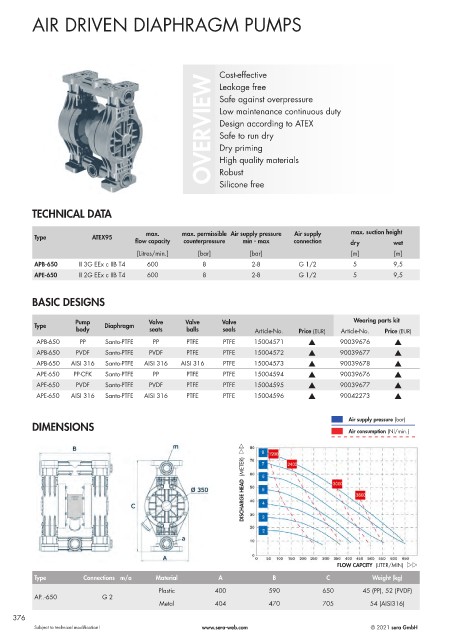

AIR DRIVEN DIAPHRAGM PUMPS

Cost-effective
OVERVIEW Low maintenance continuous duty
Leakage free
Safe against overpressure

Design according to ATEX
Safe to run dry
Dry priming
High quality materials

Silicone free

TECHNICAL DATA Robust

max. max. permissible Air supply pressure Air supply max. suction height
Type ATEX95
flow capacity counterpressure min - max connection dry wet
[Litres/min.] [bar] [bar] [m] [m]
APB-650 II 3G EEx c IIB T4 600 8 2-8 G 1/2 5 9,5
APE-650 II 2G EEx c IIB T4 600 8 2-8 G 1/2 5 9,5

BASIC DESIGNS

Pump Valve Valve Valve Wearing parts kit
Type Diaphragm
body seats balls seals Article-No. Price (EUR) Article-No. Price (EUR)
APB-650 PP Santo-PTFE PP PTFE PTFE 15004571 s 90039676 s
APB-650 PVDF Santo-PTFE PVDF PTFE PTFE 15004572 s 90039677 s
APB-650 AISI 316 Santo-PTFE AISI 316 AISI 316 PTFE 15004573 s 90039678 s
APE-650 PP-CFK Santo-PTFE PP PTFE PTFE 15004594 s 90039676 s
APE-650 PVDF Santo-PTFE PVDF PTFE PTFE 15004595 s 90039677 s
APE-650 AISI 316 Santo-PTFE AISI 316 PTFE PTFE 15004596 s 90042273 s

Air supply pressure (bar)
DIMENSIONS Air consumption (Nl/min.)

DISCHARGE HEAD (METER) ww

FLOW CAPCITY (LITER/MIN) ww
Type Connections m/a Material A B C Weight (kg)
Plastic 400 590 650 45 (PP), 52 (PVDF)
AP..-650 G 2
Metal 404 470 705 54 (AISI316)
