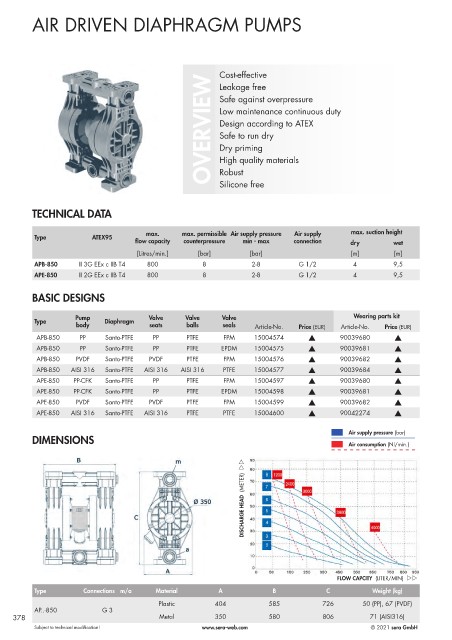

AIR DRIVEN DIAPHRAGM PUMPS

Cost-effective
OVERVIEW Low maintenance continuous duty
Leakage free
Safe against overpressure

Design according to ATEX
Safe to run dry
Dry priming
High quality materials

Silicone free

TECHNICAL DATA Robust

max. max. permissible Air supply pressure Air supply max. suction height
Type ATEX95
flow capacity counterpressure min - max connection dry wet
[Litres/min.] [bar] [bar] [m] [m]
APB-850 II 3G EEx c IIB T4 800 8 2-8 G 1/2 4 9,5
APE-850 II 2G EEx c IIB T4 800 8 2-8 G 1/2 4 9,5

BASIC DESIGNS

Pump Valve Valve Valve Wearing parts kit
Type body Diaphragm seats balls seals Article-No. Price (EUR) Article-No. Price (EUR)
APB-850 PP Santo-PTFE PP PTFE FPM 15004574 s 90039680 s
APB-850 PP Santo-PTFE PP PTFE EPDM 15004575 s 90039681 s
APB-850 PVDF Santo-PTFE PVDF PTFE FPM 15004576 s 90039682 s
APB-850 AISI 316 Santo-PTFE AISI 316 AISI 316 PTFE 15004577 s 90039684 s
APE-850 PP-CFK Santo-PTFE PP PTFE FPM 15004597 s 90039680 s
APE-850 PP-CFK Santo-PTFE PP PTFE EPDM 15004598 s 90039681 s
APE-850 PVDF Santo-PTFE PVDF PTFE FPM 15004599 s 90039682 s
APE-850 AISI 316 Santo-PTFE AISI 316 PTFE PTFE 15004600 s 90042274 s

Air supply pressure (bar)
DIMENSIONS Air consumption (Nl/min.)

DISCHARGE HEAD (METER) ww

FLOW CAPCITY (LITER/MIN) ww
Type Connections m/a Material A B C Weight (kg)
Plastic 404 585 726 50 (PP), 67 (PVDF)
AP..-850 G 3
378 Metal 350 580 806 71 (AISI316)
