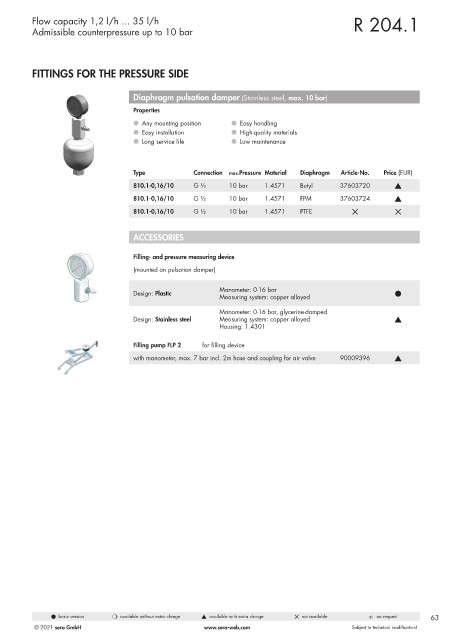

Page 63 - Pompy Dozujące 2021

Flow capacity 1,2 l/h ... 35 l/h R 204.1
Admissible counterpressure up to 10 bar

FITTINGS FOR THE PRESSURE SIDE

Diaphragm pulsation damper (Stainless steel, max. 10 bar)
Properties

l Any mounting position l Easy handling
l Easy installation l High-quality materials
l Long service life l Low maintenance

Type Connection max.Pressure Material Diaphragm Article-No. Price (EUR)
810.1-0,16/10 G ½ 10 bar 1.4571 Butyl 37603720 s
810.1-0,16/10 G ½ 10 bar 1.4571 FPM 37603724 s
810.1-0,16/10 G ½ 10 bar 1.4571 PTFE 5 5

ACCESSORIES

Filling- and pressure measuring device
(mounted on pulsation damper)

Manometer: 0-16 bar
Design: Plastic Measuring system: copper alloyed l

Manometer: 0-16 bar, glycerine-damped
Design: Stainless steel Measuring system: copper alloyed s
Housing: 1.4301

Filling pump FLP 2 for filling device
with manometer, max. 7 bar incl. 2m hose and coupling for air valve 90009396 s

l basic version m available without extra charge s available with extra charge 5 not available & on request 63
Subject to technical modification! www.sera-web.com © 2021 sera GmbH © 2021 sera GmbH www.sera-web.com Subject to technical modification!
